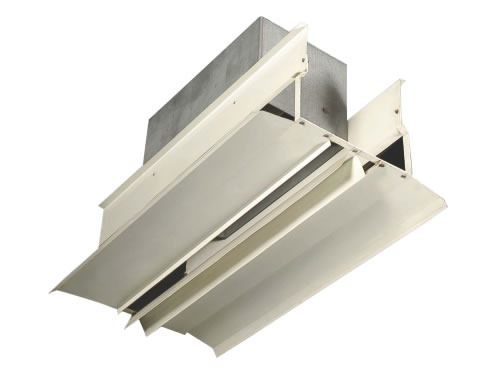

Steel Plenum Boot for Model DesignFlo (DFL) Linear Slot Diffuser The DFP is a galvanized steel plenum boot for our Designflo linear slot diffusers. This plenum is available in many lengths and configurations. The plenum is attaches to the linear with clips or is available with a. Linear Slot Diffuser T-Bar Mount Supply without Plenum with Type 2 Frame. Linear Slot Diffuser T-Bar Mount Return with Plenum with Type 2 Frame. Linear Slot Diffuser T-Bar Mount Return without Plenum with Type 2 Frame. Linear Slot Diffuser Surface Mount Supply with Plenum with Type 4 Frame.

1. Linear Slot Air Diffuser
2. Supply Linear Diffuser

Heating, ventilation, and air conditioning (HVAC) systems supply heated and cooled air to different areas of a home or building. Each room requires a supply and return vent, or grill, to distribute air from HVAC ducts into the space, then collect exhaust air and transfer it outdoors. A linear diffuser serves as an effective alternative to traditional supply and exhaust vents, and may also improve the appearance of the room in some applications.

The average linear diffuser consists of a long, narrow metal casing with a series of louvers or grills along once face. Installers fasten the linear diffuser into a ceiling, wall, or window sill area so that the louvered face sits flush with the surrounding surface. Linear diffusers work with both drywall structures and drop ceilings, but different types of models may be required to fit different applications. The most common linear diffuser designs include rows of diffusers along an entire wall, with vents placed either in the ceiling or window sills.

Traditional supply vents feature a very large, rounded design. The entire air contents of each supply duct were forced out of a single vent, creating drafts and noisy conditions. In a room with linear diffusers, the supply air is distributed through a series of narrow channels so it enters the room in several different areas at once. This creates a much more even distribution of air, as well as improved comfort and quieter ventilation.

Linear Slot Air Diffuser

Engineers and installers must select each linear diffuser carefully to maximize air flow and ensure a comfortable, healthy building. The fins or slots on each unit may face different directions, which determines which way the air can flow from each vent. The angle and size of each of these slots must match the size of the HVAC system, as well as the required airflow for the building. The size and configuration of each vent also effects noise levels and the speed at which the air can travel.

Different linear diffuser design options allow building owners to create the desired finish within a space. Each features a unique flange design to trim out the edges of the diffuser and provide a neat transition between the diffuser and the wall or ceiling. These devices also come in different materials and finishes, some of which can be painted to match surrounding surfaces. Models made from stainless steel or thermoplastics often feature a manufacturer-applied finish that cannot be painted.

Aerodynamically designed blades provide a tight horizontal pattern that maintains stability even at low airflow rates, making the SDS ideal for VAV applications. Excellent for architectural applications, the SDS has many mounting styles and is available with multiple slot widths and quantities to meet a range of airflow requirements.

Supply Linear Diffuser

• Models
  • Supply (SDS)
  • Return (SDR)
  • Curved supply/return (SDC)
  • 4-way Slot Diffuser (SDS4)
• Plenum
  • Sloped (SDA)
  • Square (SDB)
• Slot Widths
  • 1/2 in.
  • 3/4 in.
  • 1 in.
  • 1 1/2 in.
• Slot Quantity
  • 1 to 10
• Accessories
  • Blank-off strips
  • Mitered corner section (MC)
